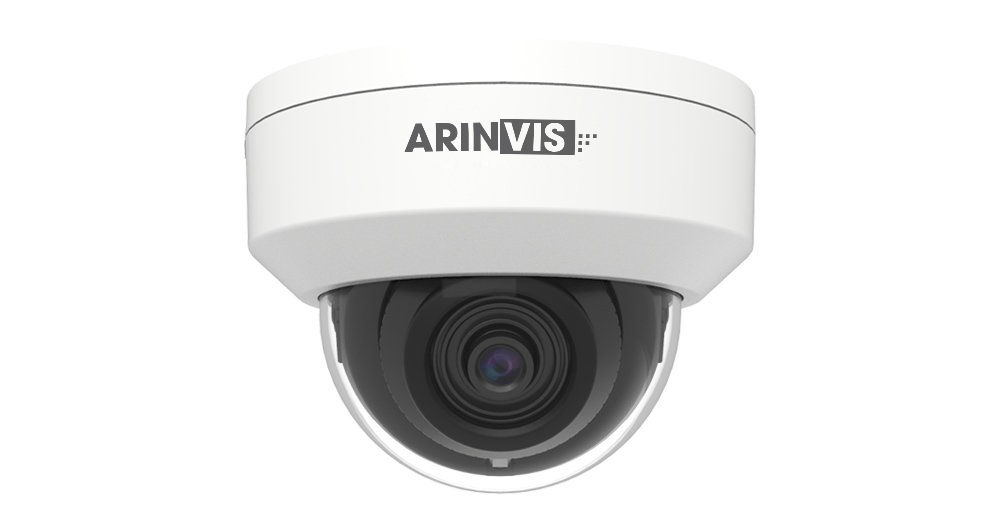

Camera bán cầu hồng ngoại AI 2.0 Megapixel ARINVIS ARC-242

Video
• Imaging Device: 1/2.7″
• Effective Pixels: 2MP 1920(H)×1080(V)
• Scanning System: Progressive CMOS
• Min. Illumination: Color 0.006lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
Lens Type
• Focal Length (Zoom Ratio): 2.8mm
• Max. Aperture Ratio: F No. 2.2
• Angular Field of View: Horizontal: 103°, Vertical: 55°, Diagonal: 126°
• Min. Object Distance: 0.8m
• Lens Type: Fixed(M12)
Operational
• IR Viewable Length: Up to 20m
• Camera Title: On/Off
• Day & Night: IR cut filter with auto switch（Day/Night/Auto/Image/Schedule）
• Backlight Compensation: Off/On (5 Zone)
• Wide Dynamic Range: DWDR
• Digital Noise Reduction: 3D DNR
• Motion Detection: Off/On (8 Level)
• Privacy Masking: Off/On (4 Zone, Rectangle)
• Gain Control: Auto
• White Balance: Auto/Manual
• Electronic Shutter Speed: 1/5 ~ 1/20000s
• Mirror: Flip/Rotation
• On-Board Storage: Micro SD slot, up to 256GB
• Alarm: NA
• Audio: 1 input (RCA), 1 output (RCA)
• Hardware Reset: Yes
• Smart Feature: NA
Network
• Ethernet: RJ45(10/100BASE-T)
• Video Compression Format: H.265/H.264
• Resolution: “Main Stream &30fps 1080P(1920×1080), Sub Steam &20fps VGA(640×480)”
• Video Quality Ajustment: 256Kbps ~ 4Mbps
• Bitrate control method: CBR/VBR
• Streaming Capability: Dual-Stream(Main/Sub)
• Protocol: “TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP”
• Web browser: “IE10/11”
• Security: complicated password;Authenticated username and password
• Streaming Method: Unicast/Multicast
• Application Programming Interface: ONVIF
Environmental
• Operating Conditions: -35～+60°C/less than ≤ 95% RH
• Ingress Protection: NA
Electrical
• Input Voltage / Current: D12V/POE(IEEE802.3af)
• Power Consumption（IR OFF）: 1.5W-2.5W
• Power Consumption（IR ON）: 3W-4.5W
Mechanical
• Material: Plastics
• Dimensions (HxWxD): 115*91.6mm
• Weight: 306g
